性能

性能基准测试

要初步了解 Redis JSON 的功能，您可以使用 redis-benchmark 测试它，就像任何其他 Redis 命令一样。但是，为了更好地控制测试，我们将使用一个用 Go 编写的工具，名为 ReJSONBenchmark，我们预计将在不久的将来发布该工具。

以下数字来自 AWS EC2 c4.8xlarge 实例，该实例同时运行 Redis 服务器和基准测试工具。到服务器的连接通过网络堆栈进行。所有测试都是非流水线化的。

注意：以下结果使用 Redis JSON 的预览版进行测量，该版本仍在很大程度上未优化。

Redis JSON 基线

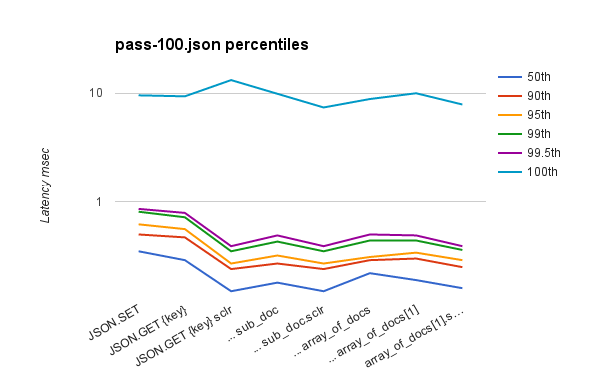

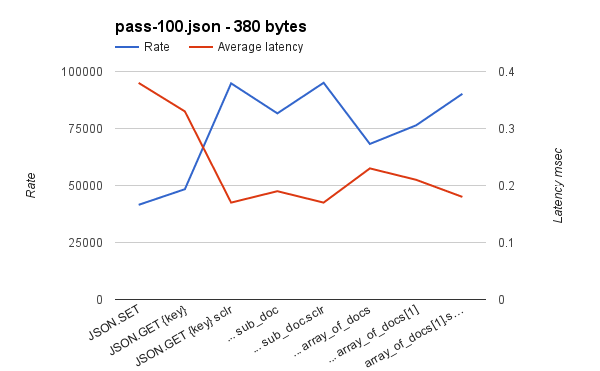

一个较小的对象

我们测试一个纯合成但有趣的 JSON 值。测试对象是 /tests/files/pass-100.json，它的大小为 380 字节，并且是嵌套的。我们首先测试将其 SET，然后使用几种不同的路径 GET 它。

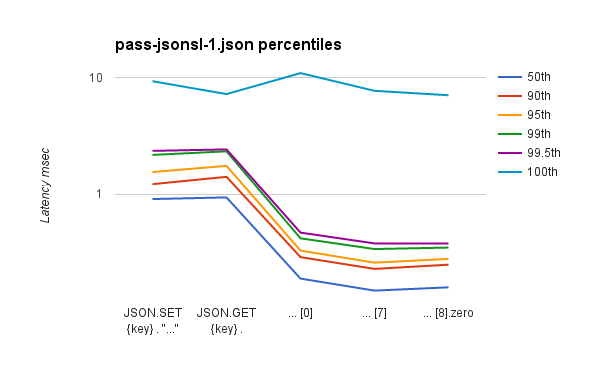

一个更大的数组

继续使用更大的值，我们在 /tests/files/pass-jsonsl-1.json 中使用 1.4 kB 的数组

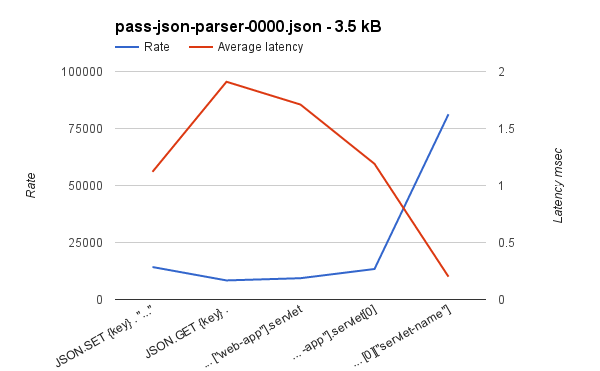

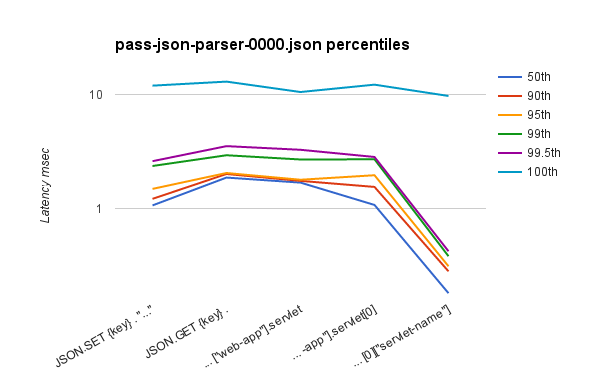

一个相当大的对象

为了结束，我们继续进行，现在我们将使用一个不小于 3.5 kB 的庞然大物，如 /tests/files/pass-json-parser-0000.json 中所给出的。

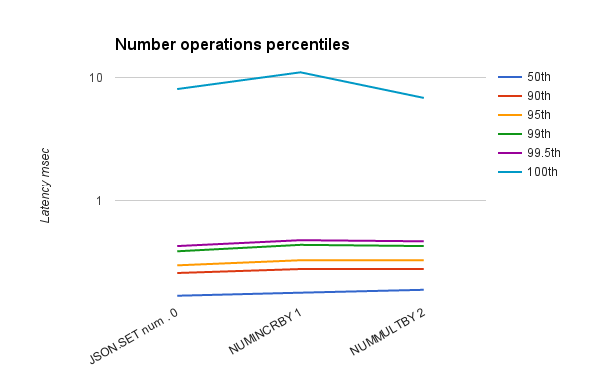

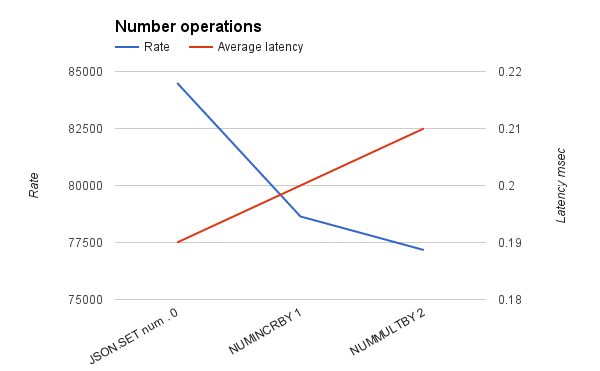

数字操作

最后但并非最不重要的是，一些加法和乘法。

基准

为了建立一个基准，我们将使用 Redis PING 命令。首先，让我们看看 redis-benchmark 报告了什么。

~$ redis/src/redis-benchmark -n 1000000 ping
====== ping ======
  1000000 requests completed in 7.11 seconds
  50 parallel clients
  3 bytes payload
  keep alive: 1

99.99% <= 1 milliseconds
100.00% <= 1 milliseconds
140587.66 requests per second

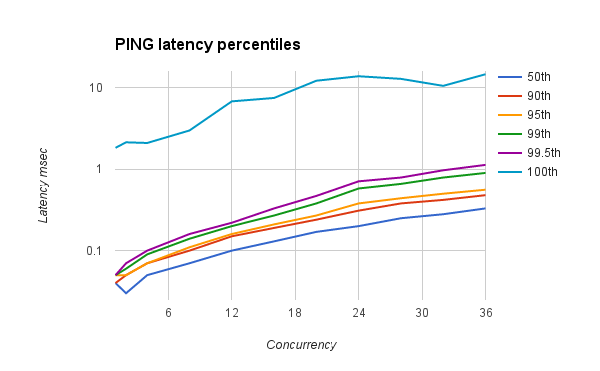

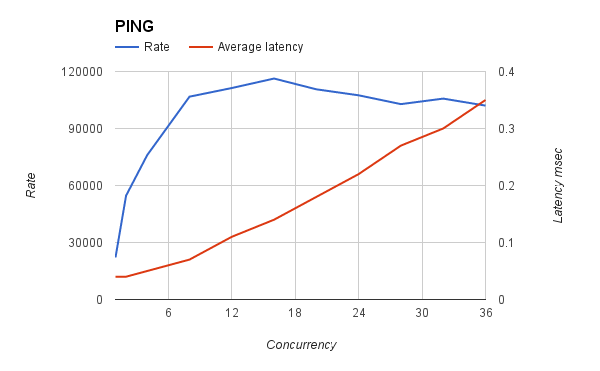

ReJSONBenchmark 的并发性是可配置的，因此我们将测试一些设置以找到一个合适的设置。以下是结果，表明 16 个工作进程可以产生最佳的吞吐量。

请注意，我们的基准测试工具在 PING 时表现略差 - 只产生了 116K 个操作，而 redis-cli 产生了 140K 个操作。

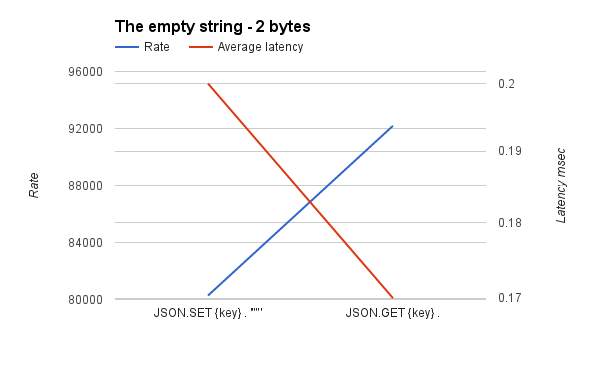

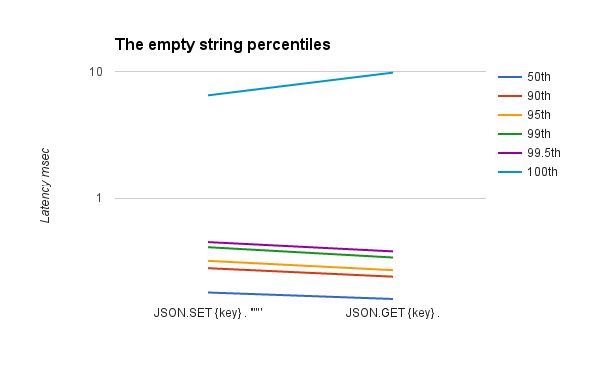

空字符串

另一个 JSON 基准测试是设置和获取一个空字符串 - 一个只有两个字节长的值（即 ""）。当然，这并不实用，但它让我们了解了模块的基本性能。

与服务器端 Lua 脚本的比较

我们将 Redis Stack 的 JSON 性能与 Redis 的嵌入式 Lua 引擎进行比较。为此，我们使用 /benchmarks/lua 中的 Lua 脚本。这些脚本提供了 JSON 的 GET 和 SET 功能，用于存储在 JSON 或 MessagePack 格式中的值。每种不同的操作（设置根、获取根、设置路径和获取路径）都用每个“引擎”在不同大小的对象上执行。

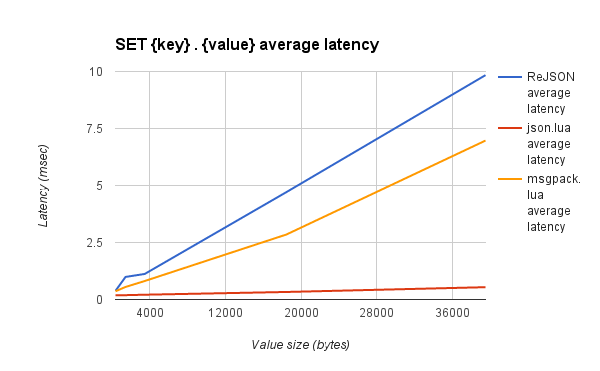

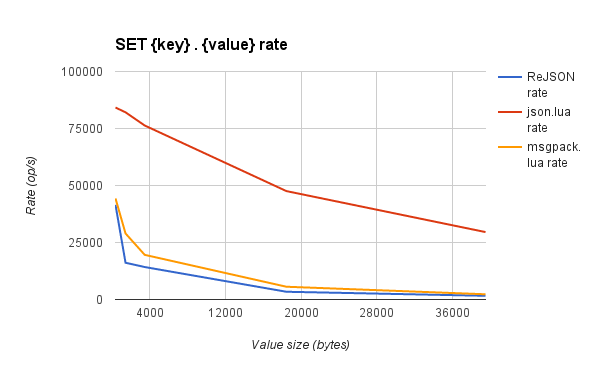

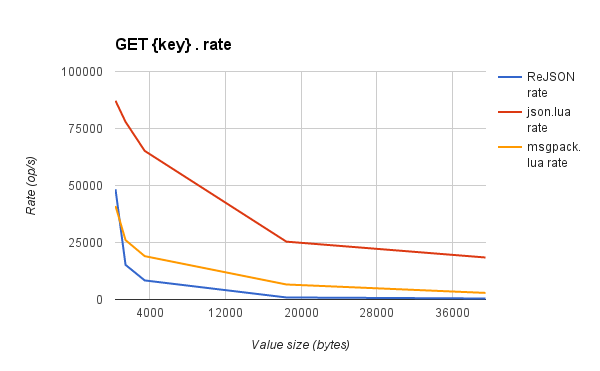

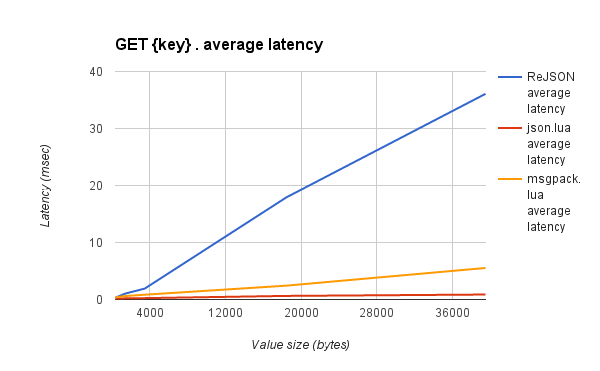

设置和获取根

在此测试中，存储原始 JSON 的性能最佳，但这并不奇怪，因为它所做的只是提供未经处理的字符串。虽然您可以（应该）使用 Redis 缓存不透明数据，而 JSON “块”只是其中一个例子，但这不允许对整个值以外的任何内容进行更新。

因此，JSON 和 MessagePack 变体之间更有效的比较是，因为它们都在实际存储之前处理传入的 JSON 值。虽然这两种方法的速率和延迟表现非常相似，但绝对测量结果表明 Redis JSON 的性能可以进一步提高。

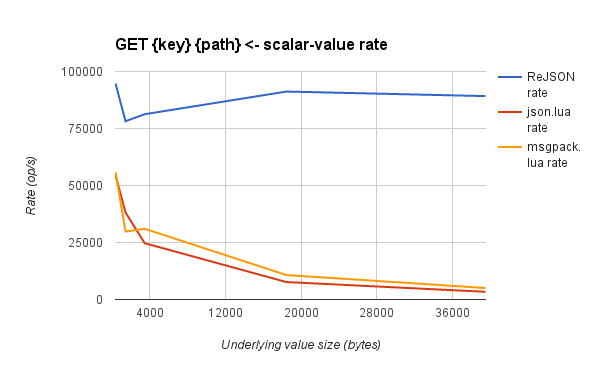

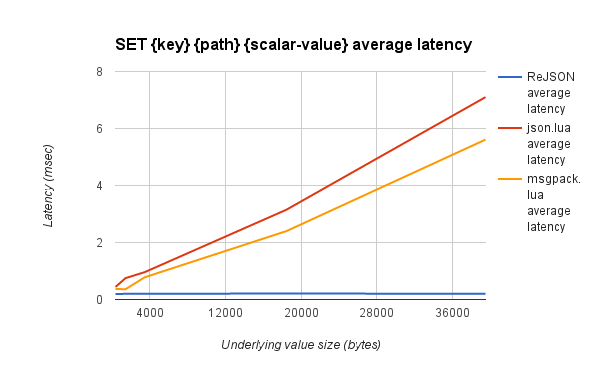

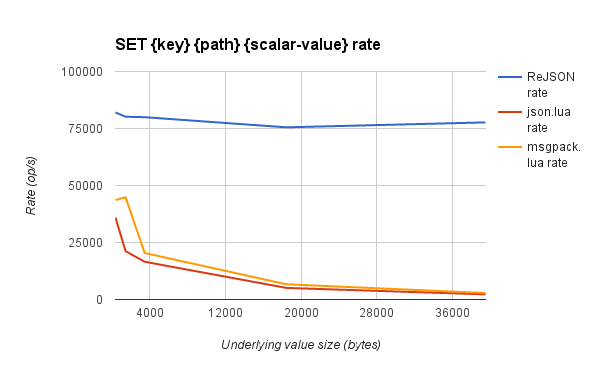

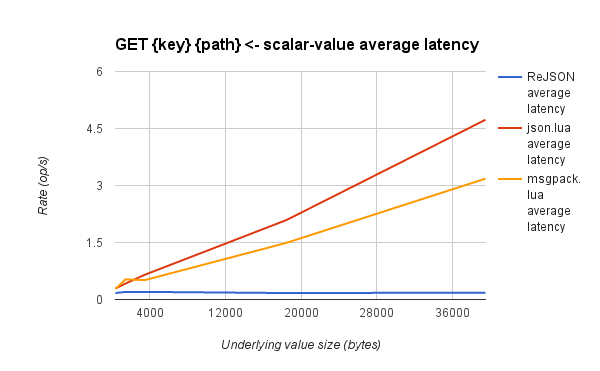

设置和获取对象的各个部分

此测试展示了 Redis JSON 的存在理由。它不仅优于 Lua 变体，而且无论对象的总体大小如何，它都能保持恒定的速率和延迟。这里没有魔法 - JSON 保持值反序列化，以便访问其各个部分是一个相对便宜的操作。与之形成鲜明对比的是原始 JSON 和 MessagePack，它们需要先解码整个对象才能对其进行任何操作（这是一个随着对象变大而变得更昂贵的过程）。

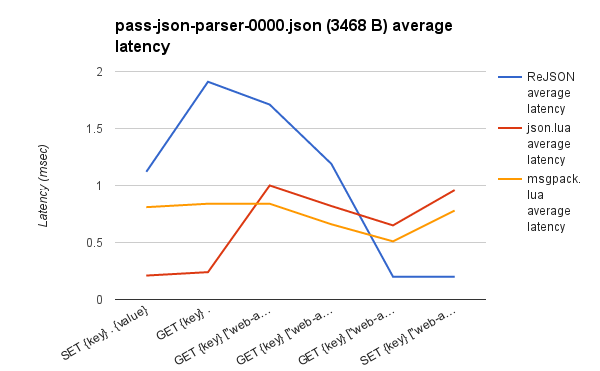

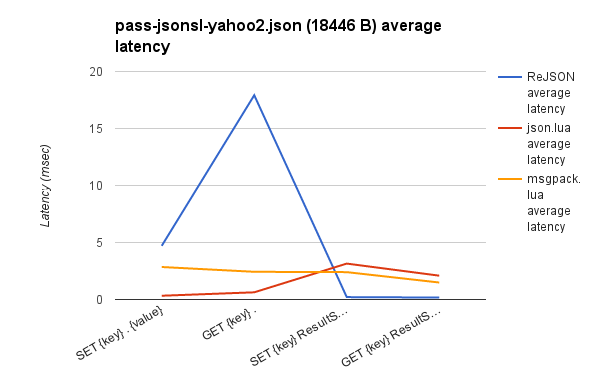

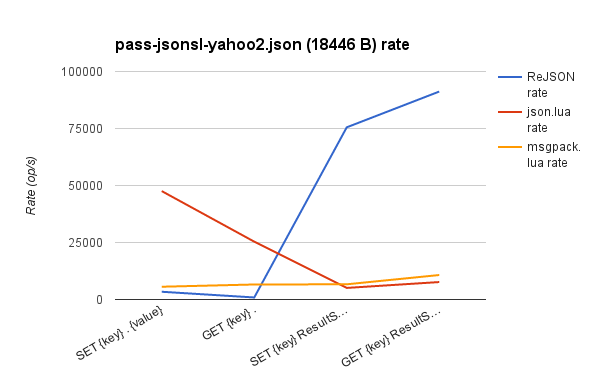

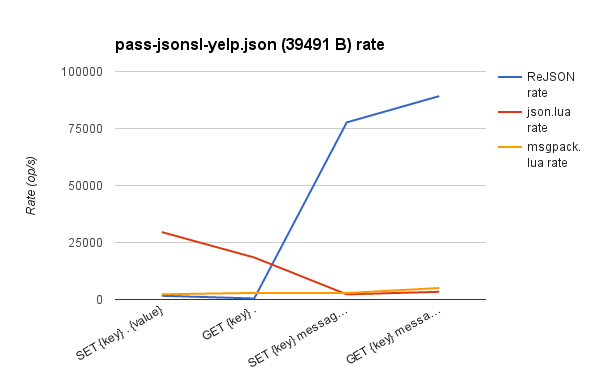

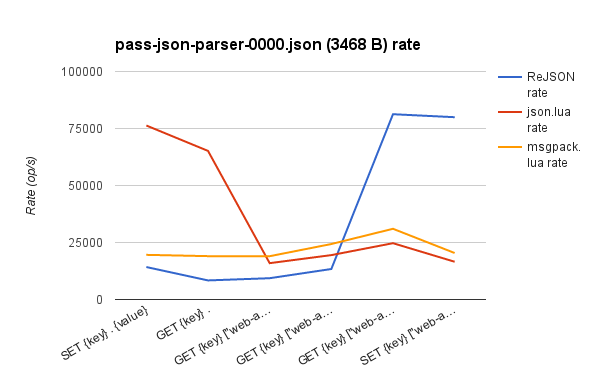

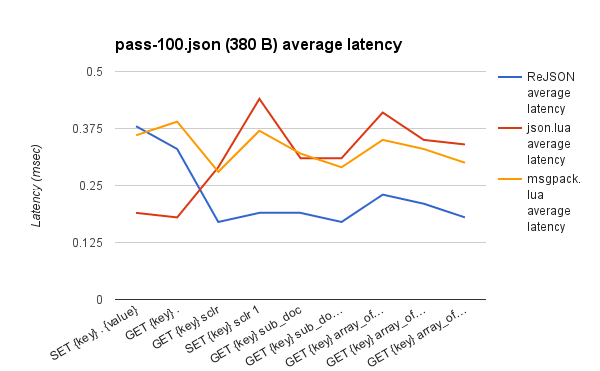

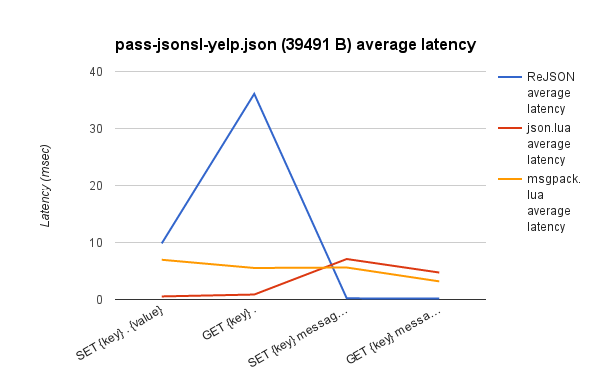

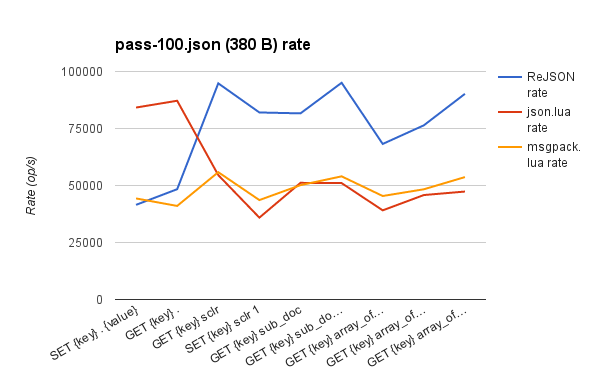

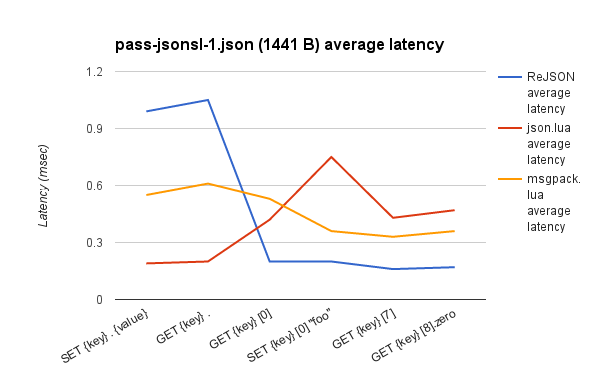

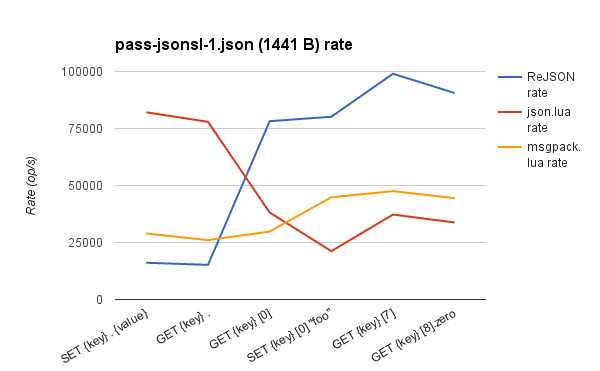

更多图表

这些图表与以前相同，但每个文件（值）独立。

原始结果

以下是基准测试的原始结果，以 CSV 格式给出。

JSON 结果

title,concurrency,rate,average latency,50.00%-tile,90.00%-tile,95.00%-tile,99.00%-tile,99.50%-tile,100.00%-tile
[ping],1,22128.12,0.04,0.04,0.04,0.05,0.05,0.05,1.83
[ping],2,54641.13,0.04,0.03,0.05,0.05,0.06,0.07,2.14
[ping],4,76000.18,0.05,0.05,0.07,0.07,0.09,0.10,2.10
[ping],8,106750.99,0.07,0.07,0.10,0.11,0.14,0.16,2.99
[ping],12,111297.33,0.11,0.10,0.15,0.16,0.20,0.22,6.81
[ping],16,116292.19,0.14,0.13,0.19,0.21,0.27,0.33,7.50
[ping],20,110622.82,0.18,0.17,0.24,0.27,0.38,0.47,12.21
[ping],24,107468.51,0.22,0.20,0.31,0.38,0.58,0.71,13.86
[ping],28,102827.35,0.27,0.25,0.38,0.44,0.66,0.79,12.87
[ping],32,105733.51,0.30,0.28,0.42,0.50,0.79,0.97,10.56
[ping],36,102046.43,0.35,0.33,0.48,0.56,0.90,1.13,14.66
JSON.SET {key} . {empty string size: 2 B},16,80276.63,0.20,0.18,0.28,0.32,0.41,0.45,6.48
JSON.GET {key} .,16,92191.23,0.17,0.16,0.24,0.27,0.34,0.38,9.80
JSON.SET {key} . {pass-100.json size: 380 B},16,41512.77,0.38,0.35,0.50,0.62,0.81,0.86,9.56
JSON.GET {key} .,16,48374.10,0.33,0.29,0.47,0.56,0.72,0.79,9.36
JSON.GET {key} sclr,16,94801.23,0.17,0.15,0.24,0.27,0.35,0.39,13.21
JSON.SET {key} sclr 1,16,82032.08,0.19,0.18,0.27,0.31,0.40,0.44,8.97
JSON.GET {key} sub_doc,16,81633.51,0.19,0.18,0.27,0.32,0.43,0.49,9.88
JSON.GET {key} sub_doc.sclr,16,95052.35,0.17,0.15,0.24,0.27,0.35,0.39,7.39
JSON.GET {key} array_of_docs,16,68223.05,0.23,0.22,0.29,0.31,0.44,0.50,8.84
JSON.GET {key} array_of_docs[1],16,76390.57,0.21,0.19,0.30,0.34,0.44,0.49,9.99
JSON.GET {key} array_of_docs[1].sclr,16,90202.13,0.18,0.16,0.25,0.29,0.36,0.39,7.87
JSON.SET {key} . {pass-jsonsl-1.json size: 1.4 kB},16,16117.11,0.99,0.91,1.22,1.55,2.17,2.35,9.27
JSON.GET {key} .,16,15193.51,1.05,0.94,1.41,1.75,2.33,2.42,7.19
JSON.GET {key} [0],16,78198.90,0.20,0.19,0.29,0.33,0.42,0.47,10.87
"JSON.SET {key} [0] ""foo""",16,80156.90,0.20,0.18,0.28,0.32,0.40,0.44,12.03
JSON.GET {key} [7],16,99013.98,0.16,0.15,0.23,0.26,0.34,0.38,7.67
JSON.GET {key} [8].zero,16,90562.19,0.17,0.16,0.25,0.28,0.35,0.38,7.03
JSON.SET {key} . {pass-json-parser-0000.json size: 3.5 kB},16,14239.25,1.12,1.06,1.21,1.48,2.35,2.59,11.91
JSON.GET {key} .,16,8366.31,1.91,1.86,2.00,2.04,2.92,3.51,12.92
"JSON.GET {key} [""web-app""].servlet",16,9339.90,1.71,1.68,1.74,1.78,2.68,3.26,10.47
"JSON.GET {key} [""web-app""].servlet[0]",16,13374.88,1.19,1.07,1.54,1.95,2.69,2.82,12.15
"JSON.GET {key} [""web-app""].servlet[0][""servlet-name""]",16,81267.36,0.20,0.18,0.28,0.31,0.38,0.42,9.67
"JSON.SET {key} [""web-app""].servlet[0][""servlet-name""] ""bar""",16,79955.04,0.20,0.18,0.27,0.33,0.42,0.46,6.72
JSON.SET {key} . {pass-jsonsl.yahoo2-json size: 18 kB},16,3394.07,4.71,4.62,4.72,4.79,7.35,9.03,17.78
JSON.GET {key} .,16,891.46,17.92,17.33,17.56,20.12,31.77,42.87,66.64
JSON.SET {key} ResultSet.totalResultsAvailable 1,16,75513.03,0.21,0.19,0.30,0.34,0.42,0.46,9.21
JSON.GET {key} ResultSet.totalResultsAvailable,16,91202.84,0.17,0.16,0.24,0.28,0.35,0.38,5.30
JSON.SET {key} . {pass-jsonsl-yelp.json size: 40 kB},16,1624.86,9.84,9.67,9.86,9.94,15.86,19.36,31.94
JSON.GET {key} .,16,442.55,36.08,35.62,37.78,38.14,55.23,81.33,88.40
JSON.SET {key} message.code 1,16,77677.25,0.20,0.19,0.28,0.33,0.42,0.45,11.07
JSON.GET {key} message.code,16,89206.61,0.18,0.16,0.25,0.28,0.36,0.39,8.60
[JSON.SET num . 0],16,84498.21,0.19,0.17,0.26,0.30,0.39,0.43,8.08
[JSON.NUMINCRBY num . 1],16,78640.20,0.20,0.18,0.28,0.33,0.44,0.48,11.05
[JSON.NUMMULTBY num . 2],16,77170.85,0.21,0.19,0.28,0.33,0.43,0.47,6.85

使用 cjson 的 Lua

json-set-root.lua empty string,16,86817.84,0.18,0.17,0.26,0.31,0.39,0.42,9.36
json-get-root.lua,16,90795.08,0.17,0.16,0.25,0.28,0.36,0.39,8.75
json-set-root.lua pass-100.json,16,84190.26,0.19,0.17,0.27,0.30,0.38,0.41,12.00
json-get-root.lua,16,87170.45,0.18,0.17,0.26,0.29,0.38,0.45,9.81
json-get-path.lua sclr,16,54556.80,0.29,0.28,0.35,0.38,0.57,0.64,7.53
json-set-path.lua sclr 1,16,35907.30,0.44,0.42,0.53,0.67,0.93,1.00,8.57
json-get-path.lua sub_doc,16,51158.84,0.31,0.30,0.36,0.39,0.50,0.62,7.22
json-get-path.lua sub_doc sclr,16,51054.47,0.31,0.29,0.39,0.47,0.66,0.74,7.43
json-get-path.lua array_of_docs,16,39103.77,0.41,0.37,0.57,0.68,0.87,0.94,8.02
json-get-path.lua array_of_docs 1,16,45811.31,0.35,0.32,0.45,0.56,0.77,0.83,8.17
json-get-path.lua array_of_docs 1 sclr,16,47346.83,0.34,0.31,0.44,0.54,0.72,0.79,8.07
json-set-root.lua pass-jsonsl-1.json,16,82100.90,0.19,0.18,0.28,0.31,0.39,0.43,12.43
json-get-root.lua,16,77922.14,0.20,0.18,0.30,0.34,0.66,0.86,8.71
json-get-path.lua 0,16,38162.83,0.42,0.40,0.49,0.59,0.88,0.96,6.16
"json-set-path.lua 0 ""foo""",16,21205.52,0.75,0.70,0.84,1.07,1.60,1.74,5.77
json-get-path.lua 7,16,37254.89,0.43,0.39,0.55,0.69,0.92,0.98,10.24
json-get-path.lua 8 zero,16,33772.43,0.47,0.43,0.63,0.77,1.01,1.09,7.89
json-set-root.lua pass-json-parser-0000.json,16,76314.18,0.21,0.19,0.29,0.33,0.41,0.44,8.16
json-get-root.lua,16,65177.87,0.24,0.21,0.35,0.42,0.89,1.01,9.02
json-get-path.lua web-app servlet,16,15938.62,1.00,0.88,1.45,1.71,2.11,2.20,8.07
json-get-path.lua web-app servlet 0,16,19469.27,0.82,0.78,0.90,1.07,1.67,1.84,7.59
json-get-path.lua web-app servlet 0 servlet-name,16,24694.26,0.65,0.63,0.71,0.74,1.07,1.31,8.60
"json-set-path.lua web-app servlet 0 servlet-name ""bar""",16,16555.74,0.96,0.92,1.05,1.25,1.98,2.20,9.08
json-set-root.lua pass-jsonsl-yahoo2.json,16,47544.65,0.33,0.31,0.41,0.47,0.59,0.64,10.52
json-get-root.lua,16,25369.92,0.63,0.57,0.91,1.05,1.37,1.56,9.95
json-set-path.lua ResultSet totalResultsAvailable 1,16,5077.32,3.15,3.09,3.20,3.24,5.12,6.26,14.98
json-get-path.lua ResultSet totalResultsAvailable,16,7652.56,2.09,2.05,2.13,2.17,3.23,3.95,9.65
json-set-root.lua pass-jsonsl-yelp.json,16,29575.20,0.54,0.52,0.64,0.75,0.94,1.00,12.66
json-get-root.lua,16,18424.29,0.87,0.84,1.25,1.40,1.82,1.95,7.35
json-set-path.lua message code 1,16,2251.07,7.10,6.98,7.14,7.22,11.00,12.79,21.14
json-get-path.lua message code,16,3380.72,4.73,4.44,5.03,6.82,10.28,11.06,14.93

使用 cmsgpack 的 Lua

msgpack-set-root.lua empty string,16,82592.66,0.19,0.18,0.27,0.31,0.38,0.42,10.18
msgpack-get-root.lua,16,89561.41,0.18,0.16,0.25,0.29,0.37,0.40,9.52
msgpack-set-root.lua pass-100.json,16,44326.47,0.36,0.34,0.43,0.54,0.78,0.86,6.45
msgpack-get-root.lua,16,41036.58,0.39,0.36,0.51,0.62,0.84,0.91,7.21
msgpack-get-path.lua sclr,16,55845.56,0.28,0.26,0.36,0.44,0.64,0.70,11.29
msgpack-set-path.lua sclr 1,16,43608.26,0.37,0.34,0.47,0.58,0.78,0.85,10.27
msgpack-get-path.lua sub_doc,16,50153.07,0.32,0.29,0.41,0.50,0.69,0.75,8.56
msgpack-get-path.lua sub_doc sclr,16,54016.35,0.29,0.27,0.38,0.46,0.62,0.67,6.38
msgpack-get-path.lua array_of_docs,16,45394.79,0.35,0.32,0.45,0.56,0.78,0.85,11.88
msgpack-get-path.lua array_of_docs 1,16,48336.48,0.33,0.30,0.42,0.52,0.71,0.76,7.69
msgpack-get-path.lua array_of_docs 1 sclr,16,53689.41,0.30,0.27,0.38,0.46,0.64,0.69,11.16
msgpack-set-root.lua pass-jsonsl-1.json,16,28956.94,0.55,0.51,0.65,0.82,1.17,1.26,8.39
msgpack-get-root.lua,16,26045.44,0.61,0.58,0.68,0.83,1.28,1.42,8.56
"msgpack-set-path.lua 0 ""foo""",16,29813.56,0.53,0.49,0.67,0.83,1.15,1.22,6.82
msgpack-get-path.lua 0,16,44827.58,0.36,0.32,0.48,0.58,0.76,0.81,9.19
msgpack-get-path.lua 7,16,47529.14,0.33,0.31,0.42,0.53,0.73,0.79,7.47
msgpack-get-path.lua 8 zero,16,44442.72,0.36,0.33,0.45,0.56,0.77,0.85,8.11
msgpack-set-root.lua pass-json-parser-0000.json,16,19585.82,0.81,0.78,0.85,1.05,1.66,1.86,4.33
msgpack-get-root.lua,16,19014.08,0.84,0.73,1.23,1.45,1.76,1.84,13.52
msgpack-get-path.lua web-app servlet,16,18992.61,0.84,0.73,1.23,1.45,1.75,1.82,8.19
msgpack-get-path.lua web-app servlet 0,16,24328.78,0.66,0.64,0.73,0.77,1.15,1.34,8.81
msgpack-get-path.lua web-app servlet 0 servlet-name,16,31012.81,0.51,0.49,0.57,0.65,1.02,1.13,8.11
"msgpack-set-path.lua web-app servlet 0 servlet-name ""bar""",16,20388.54,0.78,0.73,0.88,1.08,1.63,1.78,7.22
msgpack-set-root.lua pass-jsonsl-yahoo2.json,16,5597.60,2.85,2.81,2.89,2.94,4.57,5.59,10.19
msgpack-get-root.lua,16,6585.01,2.43,2.39,2.52,2.66,3.76,4.80,10.59
msgpack-set-path.lua ResultSet totalResultsAvailable 1,16,6666.95,2.40,2.35,2.43,2.47,3.78,4.59,12.08
msgpack-get-path.lua ResultSet totalResultsAvailable,16,10733.03,1.49,1.45,1.60,1.66,2.36,2.93,13.15
msgpack-set-root-lua pass-jsonsl-yelp.json,16,2291.53,6.97,6.87,7.01,7.12,10.54,12.89,21.75
msgpack-get-root.lua,16,2889.59,5.53,5.45,5.71,5.86,8.80,10.48,25.55
msgpack-set-path.lua message code 1,16,2847.85,5.61,5.44,5.56,6.01,10.58,11.90,16.91
msgpack-get-path.lua message code,16,5030.95,3.18,3.07,3.24,3.57,6.08,6.92,12.44
